Introduction to Simpson Engines used in various applications and TAFE Tractors/ Massey Ferguson Tractors

List of Engines from Simpson
Model: SC 213
Max Rating: 17.65 KW (24 bhp@2000 RPM)
Fixed Rating 11 KW (16 PS @ 1500 RPM)

Model: S217
Max Rating: 17.65 KW (24 bhp@2000 RPM)
Fixed Rating 11 KW (16 bhp @ 1500 RPM)

Model: S325
Max Rating: 35.1 KW (47 bhp@2250 RPM)
Intermittent Rating: 30.89 KW (42 BHP @ 2000 RPM)
Fixed Rating 11 KW (31.5 bhp @ 1500 RPM)
Model: TSJ 327
Max Rating: 42.7 KW (58 PS bhp@2300 RPM)
Model: S433
Max Rating: 35.8 KW (48 BHP@2000 rpm)
Intermittent Rating: 30.5 KW (41.5 BHP @ 1500 RPM)
Fixed Rating 30.5 KW (41.5 bhp @ 1500 RPM)
Model: TSJ436
Max Rating: 58.9 KW (80 PS@2200 rpm)
Intermittent Rating: 54.7 KW (74.5 BHP @ 2200 RPM)
Fixed Rating 49.8 KW (67 bhp @ 1500 RPM)
Model: ST440
Max Rating: 70.7 KW (95 PS@2200 rpm)
Intermittent Rating: 66.19 KW (90 PS @ 2200 RPM)
Fixed Rating 581. KW (79 bhp @ 1500 RPM)
Model: SJ327
Range: 49.5 - 58 PS
Model: SJV326
Range: 55 - 74 PS
Model: SJ436
Range: 60 - 80 PS
Model: S440
Range: 95 PS

Introduction to Simpson Engines Spares used in various applications and TAFE Tractors/ Massey Ferguson Tractors and Cranes, Forklifts, Engines

Specifications of Simpson Spares
Contents of Simpson Engine Overhaul Kit Pistons
Rings
Liners
Gasket
Valves both inlet and exhaust
Valve guide
Valve stem seal
Connecting bush
Timing case seal
Main bearing o ring
Engine lock kit
Main Bearing. 10 size
Connecting Bearing 10 size
Main Bearing Seal

Excluding Items in S217 and S327 kits are
Valve guides
Valve Stem Seal
Timing Case Seal
Main Bearing O ring
Main Bearing
Connecting Bearing and Main Bearing Seal.


Parts List (Please check Parts below before placing order)

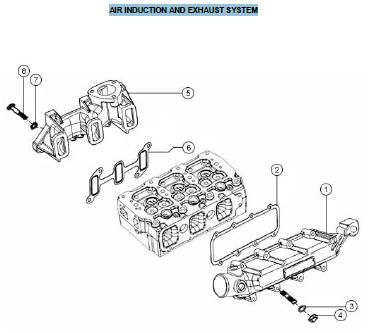

Part : AIR INDUCTION AND EXHAUST SYSTEM
1 - Inlet Manifold
2 - Joint Inlet Manifold to Cylinder Head
3 - Washer Inlet Manifold to Cylinder Head
4 - Setscrew Inlet Manifold to Cylinder Head
5 - Exhaust Manifold
6 - Joint Exhaust Manifold to Cylinder Head
7 - Washer Exhaust Manifold to Cylinder Head
8 - Setscrew Exhaust Manifold to Cylinder Head
Air Induction & Exhaust 		System

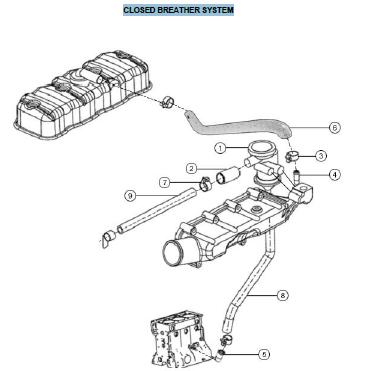

Part : CLOSED BREATHER SYSTEM
1 -- Crank Case Vent Unit
2 -- Hose PCV to Air Filter Pipe
3 -- Clip Hose Breather Outlet To Inlet Manifold
4 -- Pipe Induction Manifold
5 -- Pipe Oil Seprater
6 -- Hose Closed Breather System
7 -- Clip Extension Hose
8 -- Hose Breather Oil Drain To Cyl. Block
9 -- Pipe Assembly PCV Hose to Air Filter
Air Induction & Exhaust 		System

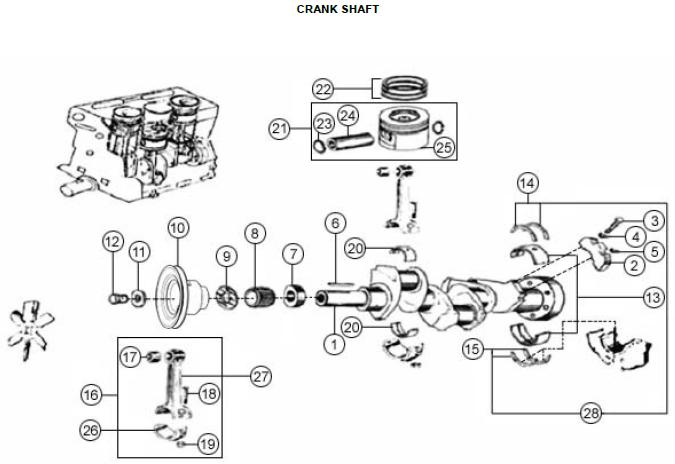

Part : CRANK SHAFT
1 -- Crank Case Vent Unit
2 -- Hose PCV to Air Filter Pipe
3 -- Clip Hose Breather Outlet To Inlet Manifold
4 -- Pipe Induction Manifold
5 -- Pipe Oil Seprater
6 -- Hose Closed Breather System
7 -- Clip Extension Hose
8 -- Hose Breather Oil Drain To Cyl. Block
9 -- Pipe Assembly PCV Hose to Air Filter
Air Induction & Exhaust 		System

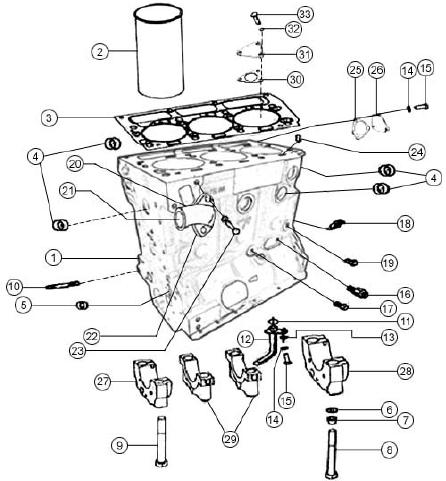

Part : CYLINDER BLOCK
Cyl Block Assy (Consists of 1, 2, 4, 7, 8, 9, 17, 27, 27A, 28, 29, 30)
1 -- Cylinder Block
2 -- Liner Cylinder Block
3 -- Gasket Cylinder Head
4 -- Plug
5 -- Plug Cyl Bck Pressure Rail Frt And Rear
6 -- O Ring Thimble To Block Seat 4th Brg Cap
7 -- Thimble 4th Brg Cap
8 -- Set Screw Main Brg Cap - Cyl Blck Rear Cap
9 -- Set Screw Bearing Cap To Cylinder Block.
10--Stud Cylinder Block to Axle Bracket
11 -- O Ring Oil Separator Pipe
12 -- Pipe Assy Oil Separator To Block
13 -- Washer Plain
14 -- Spring Washer
15 -- Set Screw Cyl Block - Tacho Meter Mounting.
16 -- Union Lub Oil Pessure Gauge(1/8 UTFXMIDX1)
17 -- Plug
18 -- Pipe Oil Seperator To Block.
19 -- Drain Plug
20 -- Joint Water Inlet Body
21 -- Water Inlet Connection
22 -- Washer
23 -- Set Screw, Water Inlet Connection
24 -- Dowel Cyl Block to Head
25 -- Joint Tacho Meter Drive Housing
26 -- Plate Tachometer Drive Blanking
27 -- Cap Main Bearing Front
28 -- Cap Main Bearing Rear
29 -- Cap Main Bearing Intermediate
30 -- Gasket Feed Pump
31 -- Plate Blanking Feed Pump
32 -- Washer
33 -- Set Screw
Cylinder Block

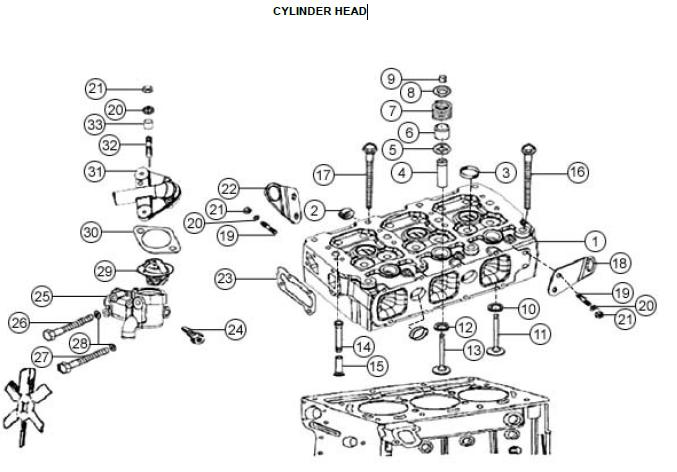

Part : CYLINDER HEAD
1 -- Cylinder Head (TSJ 327 without Glow Plug)
2 -- Plug Cylinder Head
3 -- Plug Cylinder Head
4 -- Guide Exhaust & Inlet Valve
5 -- Spring Washer
6 -- Seal Valve Stem
7 -- Spring Exhaust & Inlet Valve Outer
8 -- Cap Valve Spring
9 -- Cotter Valve Spring (Serviced In Pairs)
10 -- Insert Inlet Valve Seat
11 -- Valve Inlet
12 -- Insert Exhaust Valve Seat
13 -- Valve Exhaust
13A -- Engine Valve Set (Includes 11 & 13)
14 -- Pushrod
15 -- Tappet
16 -- Bolt Cylinder Head Long
17 -- Bolt Cylinder Head Short
18 -- Lifting Hook Rear
19 -- Stud Lifting Plate Front And Rear
20 -- Washer Water Outlet Body To Cyl Head Screw
21 -- Nut
22 -- Plate Lifting Hook Front
23 -- Joint Cylinder Head Water Outlet body
24 -- Plug Water Outlet Body
25 -- Body Cyl Head Water Outlet
26 -- Setscrew Body Cylinder Head Water Outlet
27 -- Setscrew Body Cylinder Head Water Outlet
28 -- Spring Washer
29 -- Thermostat
30 -- Joint Water Outlet Connection Top
31 -- Connection Cylinder Head Water Outlet
32 -- Stud Water Outlet Body
33 -- Spacer
Cylinder Head

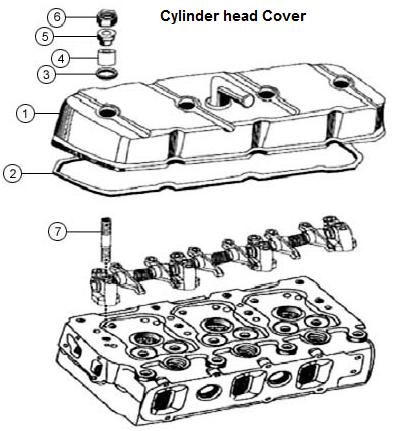

Part : CYLINDER HEAD COVER
1 -- Assembly Cover Cylinder Head
2 -- Joint Cylinder Head Cover
3 -- Washer Cylinder Head Cover Retaining Nut
4 -- Sleeve Cylinder Head Cover
5 -- Rubber Seal Cylinder Head Cover Cover Retaining
6 -- Nut
7 -- Stud- Cylinder head cover
Cylinder Head

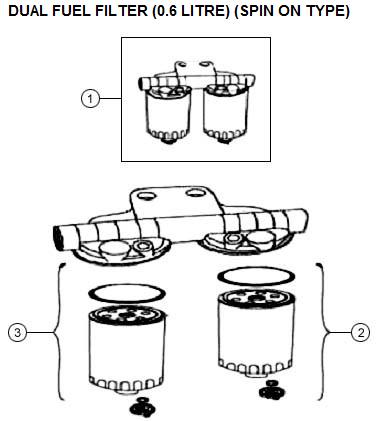

Part : DUAL FUEL FILTER (0.6 LITRE) (SPIN ON TYPE)
1 -- Filter Fuel Oil
2 -- Pre Filter
3 -- Fine Filter
Dual Fuel Filter

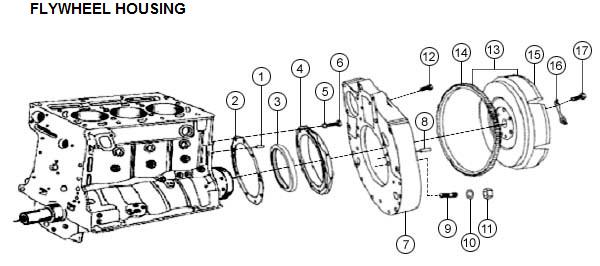

Part : Fly Wheel Housing
1 -- Dowel Flywheel
2 -- Joint Rear End Housing To Cyl.Block
3 -- Unitised Pipe Lip Seal Crankshaft Rear End
4 -- Housing R.End Oil Seal Housing
5 -- Spring Washer
6 -- Set Screw Seal Housing to Cyl Block
7 -- Plate Flywheel Housing Adaptor
8 -- Dowel Cylinder Block To Adaptor Plate
9 --Stud Adaptor Plate To Cylinder Block
10 -- Washer Adaptor Plate Stud
11 -- Nut
12 -- Cap Screw Adaptor Plate To Cyl Block
13 -- Flywheel & Starter Ring Assembly(Item 14&15)
14 -- Flywheel Ring Gear
15 -- Flywheel
16 -- Washer Tab Flywheel Set Screw
17 -- Setscrew Flywheel To Crankshaft

Dual Fuel Filter

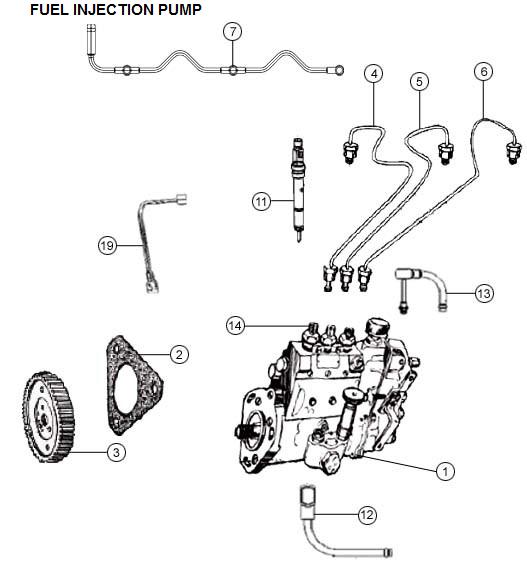

Part : Fly Wheel Housing
1 -- Fuel Injection Pump
2 -- Joint Fuel Pump To Timing Case
3 -- Gear Fuel Pump Drive
4 -- Pipe Fuel Injection Assembly No. 1 Cylinder
5 -- Pipe Fuel Injection Assembly No. 2 Cylinder
6 -- Pipe Fuel Injection Assembly No. 3 Cylinder
7 -- Pipe Fuel Oil Main Leak Off Assembly
8 -- Washer Nozzle Seating
9 -- Banjo Bolt Leak Off Pipe
10 -- Washer Banjo Bolt
11 -- Nozzle & Holder Assembly
Fuel Injection Pump

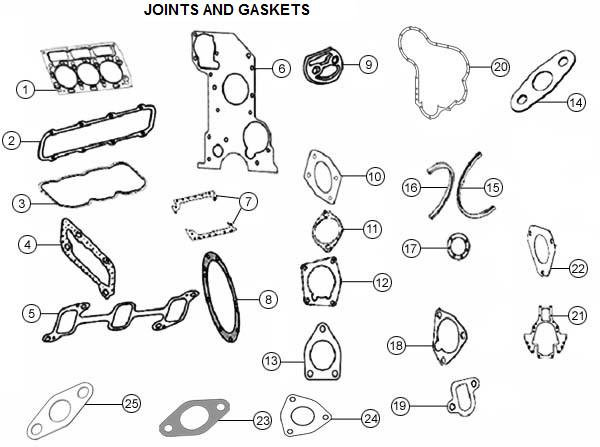

Part : Joints and Gaskets
1 -- Gasket Cylinder Head
2 -- Joint Induction Manifold
3 -- Joint Cylinder Head Cover
4 -- Joint Cylinder Head Water Outlet Body
5 -- Joint Exh Manifold
6 -- Joint Timing Case To Block
7 -- Joint Sump To Block Assembly
8 -- Joint Rear End Housing To Cyl.Block
9 -- Joint Cyl Block To Lub Oil Filter
10 -- Joint Water Pump Back Plate
11 -- Joint Water Outlet Connection Top
12 -- Joint PTO Blanking
13 -- Gasket Feed Pump
14 -- Joint Lub Oil Suction Pipe Flange To Pump
15 -- Joint Lub. Oil Sump Rear
16 -- Joint Lub. Oil Sump Front
17 -- Joint Lub. Oil Filler
18 -- Joint Tachometer Drive
19 -- Joint Water Inlet Body
20 -- Joint Front Cover To Case
21 -- Joint Cyl Block To Housing
22 -- Joints FIP To T.C(20mm Diashaft)
23 -- Joints T/C To L.O.FIL/BLA. Plate
24 -- Gasket Exh M/F Outlet Flang
25 -- Joint Lub Oil Suction Pipe Flange To Pump

joints and Gaskets

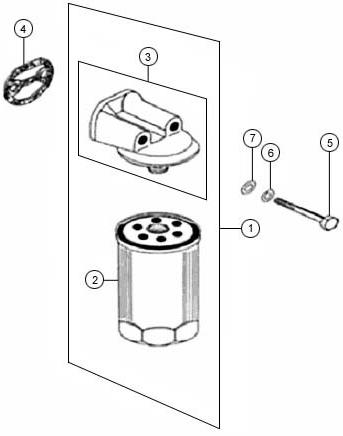

Part : LUBRICATING OIL FILTER
1 -- Lubricating Oil Filter Assembly - Conister Type..Items 2 & 3
2 -- Filter Lub Oil
3 -- Head Lub Oil Filter Assembly
4 -- Joint Cylinder Block to Lub oil Filter.
5 -- Set Screw Lub Oil Filter.
6 -- Washer Spring
7 -- Washer Lub Oil Filter Head Retaining.
8 -- Hose Breather Oil Drain To Cyl. Block
9 -- Pipe Assembly PCV Hose to Air Filter
LUBRICATING OIL FILTER
Air Induction & Exhaust 		System

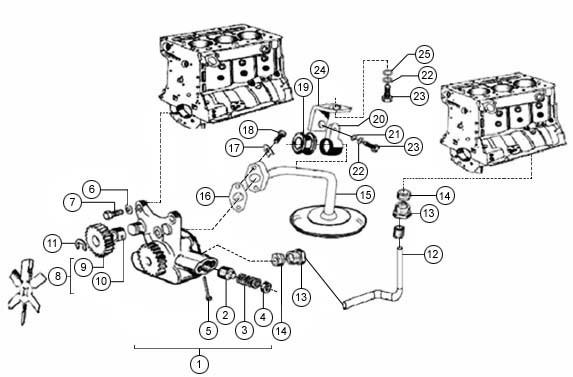

Part : LUBRICATING OIL PUMP
1 -- Pump Lub Oil Assembly (items 2,3,4,5,25)
2 -- Plunger Lub Oil Pump
3 -- Spring Lub Oil Pump.
4 -- Cap Spring Retaining.
5 -- Split Pain
6 -- Spring Washer
7 -- Set Screw Lub Oil Pump Assy to FRT BrgCap.
8 -- Gear Lub Oil Pump Idler Assy(Items 9 & 10).
9 -- Gear Lob Idler.
10 -- Lob Bush.
11 -- Circlip, Pump Idler Gear Retaining.
12 -- Pipe, Lub Oil Delivery.
13 -- Gland Nut Lub Oil Pump And Delivery Pipe.
14 -- Olive Lub Delivery Pipe.
15 -- Pipe Lub Oil Suction Assembly-Flange Type
16 -- Joint Lub Oil Suction Pipe Flange To Pump.
17 -- Washer.
18 -- Set screw Suction Pipe To Oil Pump.
19 -- Bush, Suction Pipe Cramping.
20 -- Clip Suction Pipe Clamping support bracket.
21 -- Plate Lifting Pump Blanking.
22 -- Washer.
23 -- Setscrew, Suction Pipe Clamping.
24 -- Bracket Lub Oil Sump To Cyl Block
25 -- Washer Plane
26 -- Shaft Lop
27 -- Gear Drive
28 -- Key
29 -- Rotor Assy
30 -- Cover Lop
31 -- Screw
Lubricating Oil Pump Lubricating Oil Pump

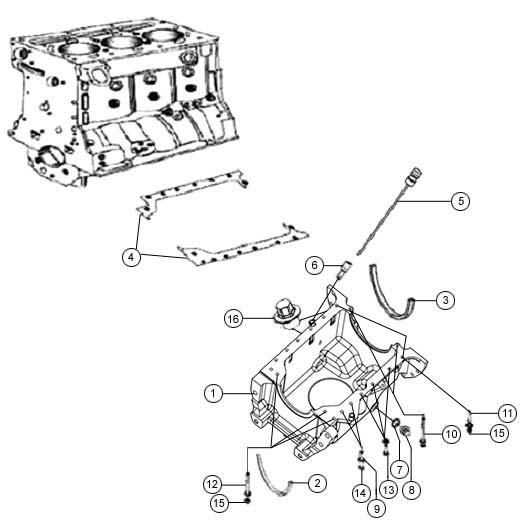

Part : LUBRICATING OIL SUMP
1 -- Sump Lubricating Oil(SG Iron For SJ Series)
2 -- Joint Sump to Cylinder Block - Front
3 -- Joint Sump to Cylinder Block – Rear
4 -- Joint Lubricating Oil Sump to Block Assembly.
5 -- Dipstick Lubricating Oil Sump Assembly with O’Ring.
6 -- Union Dipstick Lub Oil.
7 -- O‘Ring.
8 -- Plug Sump Drain.
9 -- Spring Washer.
10 -- Setscrew Sump to Rear End Oil Seal Housing.
11 -- Stud Cylinder Block to Sump – Rear.
12 -- Stud Sump To Timing Case – Front.
13 -- Setscrew Lub Oil Sump to Cylinder Block.
14 -- Setscrew Lub Oil Sump to Cylinder Block
15 -- Nut Sump to Block (CH-3187)
16 -- Plug.Lub Oil Sump.
LUBRICATING OIL SUMP
Air Induction & Exhaust 		System

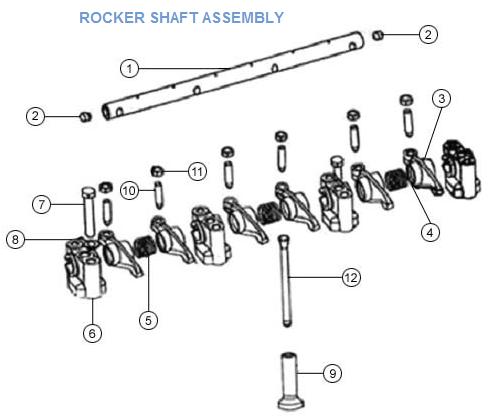

Part : ROCKER SHAFT ASSEMBLY
1 -- Rocker Shaft Assembly (Include items 1, 2, 3, 4, 5, 6, 10&11)
2 -- Rocker Shaft
3 -- Plug Rocker Shaft End
4 -- Rocker Arm Assembly (Include items 3&4)
5 -- Rocker Lever
6 -- Bush Rocker Lever
7 -- Screw – Rocker Bracket.
8 -- Washer Rocker Bracket.
9 -- Tappet.
10 -- Screw Tappet Adjusting
11 -- Locknut Tappet Adjusting Screw
12 -- Push Rod
Air Induction & Exhaust System

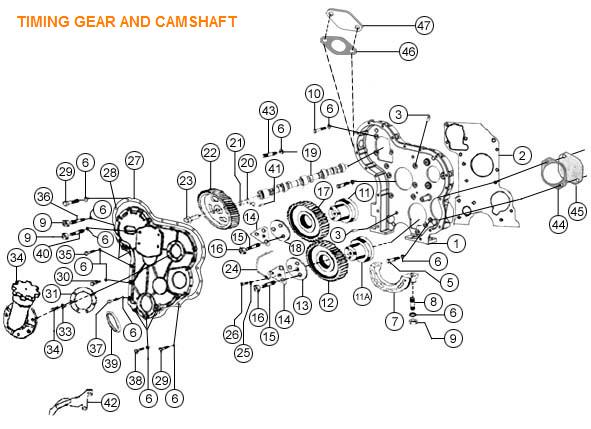

Part : TIMING GEAR AND CAM SHAFT
1 -- Timing Case
2 -- Joint Timing Case to Block
3 -- Dowel
4 -- Set Screw
5 -- Set Screw
6 -- Washer
7 -- Bridge Peice
8 -- Stud
9 -- Nut
10 -- Set Screw
11 -- Hub Idler Upper
11A -- Hub Idler Lower
12 -- Gear Idler Lower
13 -- Plate Idler Gear Lower
14 -- Thrust Washer
15 -- Stud
16 -- Nut
18 -- Gear Idler Upper
19 -- Cam Shaft Type 2
20 -- Thrust Washer
21 -- Set Screw
22 -- Cam Shaft Gear
23 -- Set Screw
24 -- Pipe Lub. Oil Idler.
25 -- Banjo Washer.
26 -- Banjo Bolt
27 -- Joint Front Cover to Timing Case, Timing Case Cover Assembly with Cover and Seal.
28 -- Timing Case Cover.
29 -- Set Screw
30 -- Set Screw
31 -- Joint Lub Oil Filter
32 -- Joint Lub Oil Filter Assembly,
33 -- Spring Washer.
34 -- Set Screw.
35 -- Set Screw.
36 -- Stud.
37 -- Set Screw.
38 -- Set Screw.
39 -- Sealing Time Cover.
40 -- Stud Water Pump.
41 -- Dowel - Cam Shaft
42 -- Timing Pointer
43 -- Stud
44 -- Joint PTO Blanking
45 -- Plate Timing Case Blanking
46 -- Joint Lub Oil Filter Blanking Plate.
47 -- Plate Lub Oil Filler Blanking.

Timing Gear and Cam Shaft

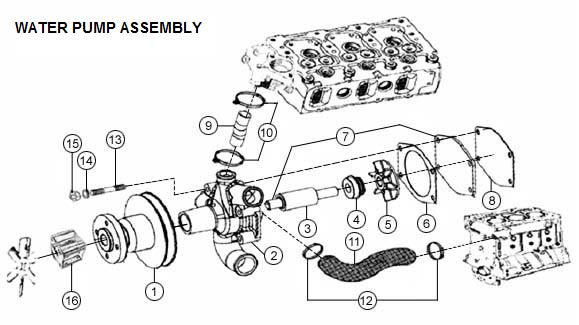

Part : WATER PUMP ASSEMBLY
Water Pump Assembly
1 -- Pulley Water Pump.
2 -- Body Water Pump.
3 -- Shaft Water Pump.
4 -- Seal Water Pump.
5 -- Impeller Water Pump.
6 -- Joint Water Pump Back Plate
7 -- Water Pump Kit (Included 7A to 7D)
7A -- Impeller Water Pump.
7B -- Joint Water Pump Back Plate.
7C -- Shaft Water Pump.
7D -- Seal Water Pump.
8 -- Back Plate Water Pump Body to Timing Case Front Cover.
9 -- Hose ByPass Connection to Water Pump Body.
10 -- Clip Water Connection Hose
11 -- Hose Water Pump Outlet to Cylinder Block Water Inlet.
12 -- Clip Water Connection Hose.
13 -- Stud Water Pump Mounting.
14 -- Spring Washer.
15 -- Nut
16 -- Extension.
Air Induction & Exhaust System

Introduction to Simpson Engines used in various applications and TAFE Tractors/ Massey Ferguson Tractors

Spares
